Pumps

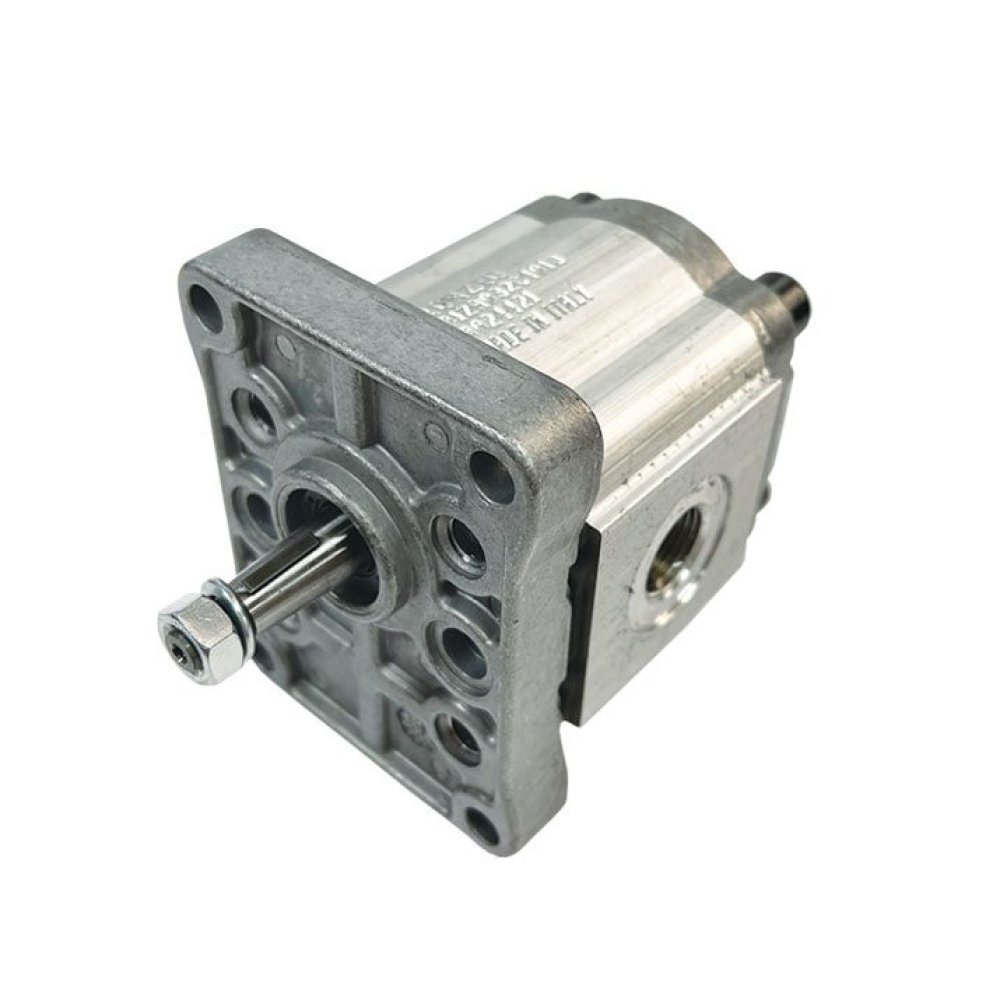

Ronzio 01ZA Gear Pumps

Ronzio | 01ZA Gear Pumps

Price On Request

• High volumetric efficiency
• Wide range of capacities: 4-6-8-11-14-17- 20-25-31cm3 /rev
• Extruded aluminium body
• Cast iron covers
• Low noise operation



Right Hand Rotation

Product No.	Capacity (cc/rev)	Port Pressure (BSPP)	Port Suction (BSPP)	Max. Working Pressure (Bar)	Peak Pressure (Bar)	Max Speed - P1 Press (rpm)	Max Speed w/o Load (rpm)	Min. Speed - P1 (undirected)
01ZA11C401D	1.08	3/8"	3/8"	210	250	6000	8000	1100
01ZA16C401D	1.59	3/8"	3/8"	210	250	6000	8000	950
01ZA21C401D	2.09	3/8"	3/8"	210	250	6000	8000	800
01ZA26C401D	2.59	3/8"	3/8"	210	250	5500	8000	700
01ZA32C401D	3.15	3/8"	3/8"	210	250	4500	7000	600
01ZA37C401D	3.68	3/8"	3/8"	210	250	4000	6000	500
01ZA42C401D	4.19	3/8"	3/8"	190	230	3800	5500	450
01ZA48C401D	4.79	3/8"	3/8"	180	220	3500	5000	400
01ZA55C401D	5.49	3/8"	3/8"	160	200	3500	4500	400
01ZA62C401D	6.2	3/8"	3/8"	140	180	3000	4500	400
01ZA78C401D	7.81	3/8"	3/8"	120	160	3000	4000	400
01ZA88C401D	8.82	3/8"	3/8"	100	140	3000	4000	400



Left Hand Rotation

Product No.	Capacity (cc/rev)	Port Pressure (BSPP)	Port Suction (BSPP)	Max. Working Pressure (Bar)	Peak Pressure (Bar)	Max Speed - P1 Press (rpm)	Max Speed w/o Load (rpm)	Min. Speed - P1 (undirected)
01ZA11C401S	1.08	3/8"	3/8"	210	250	6000	8000	1100
01ZA16C401S	1.59	3/8"	3/8"	210	250	6000	8000	950
01ZA21C401S	2.09	3/8"	3/8"	210	250	6000	8000	800
01ZA26C401S	2.59	3/8"	3/8"	210	250	5500	8000	700
01ZA32C401S	3.15	3/8"	3/8"	210	250	4500	7000	600
01ZA37C401S	3.68	3/8"	3/8"	210	250	4000	6000	500
01ZA42C401S	4.19	3/8"	3/8"	190	230	3800	5500	450
01ZA48C401S	4.79	3/8"	3/8"	180	220	3500	5000	400
01ZA55C401S	5.49	3/8"	3/8"	160	200	3500	4500	400
01ZA62C401S	6.2	3/8"	3/8"	140	180	3000	4500	400
01ZA78C401S	7.81	3/8"	3/8"	120	160	3000	4000	400
01ZA88C401S	8.82	3/8"	3/8"	100	140	3000	4000	400
