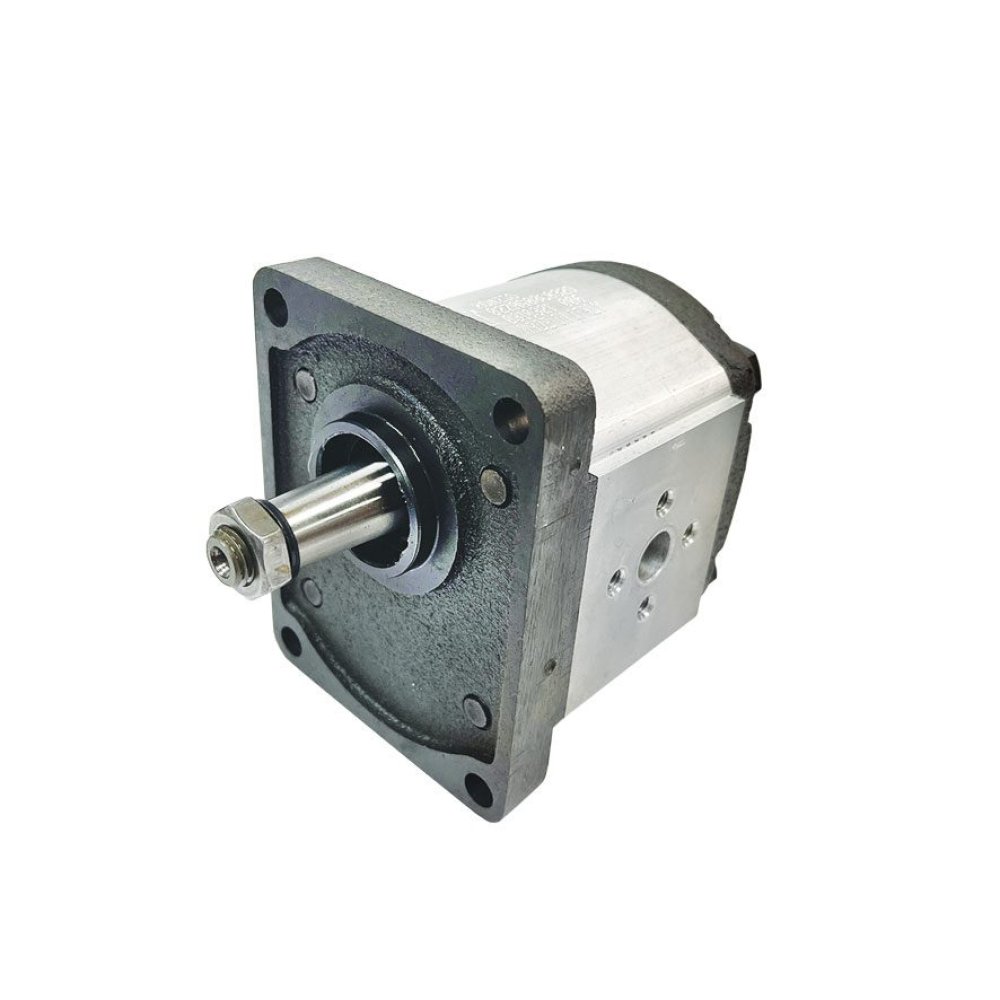

Ronzio 02ZA Gear Pumps - Flanged Ports
Ronzio | 02ZA Flanged Port Gear Pumps
Price On Request
- Cast iron covers for high performances
- High volumetric efficiency: average 95-97%
- Wide range of capacities : 4-6-8-11-14-17-20- 25-31-cm3 / rev
- Extruded aluminium body
- Low noise operation
Right Hand Rotation
| Product No. | Capacity (cc/rev) | P1 Max. Working Pressure (Bar) | P2 Intermittent Pressure (Bar) | P3 Max. Peak Pressure (Bar) | Max Speed - P1 Pressure (rpm) | Max Speed w/o Load (rpm) | Min. Speed - P1 Pressure (rpm) |
| 02ZAG04C032D | 4.4 | 300 | 340 | 360 | 4500 | 5500 | 1000 |
| 02ZAG06C032D | 6.28 | 300 | 310 | 360 | 4500 | 5500 | 700 |
| 02ZAG08C032D | 8.16 | 300 | 310 | 360 | 3700 | 4700 | 550 |
| 02ZAG11C033D | 11.3 | 300 | 310 | 360 | 3300 | 4000 | 450 |
| 02ZAG14C033D | 14.45 | 300 | 300 | 360 | 2700 | 3300 | 400 |
| 02ZAG17C033D | 16.95 | 270 | 270 | 330 | 2500 | 3000 | 350 |
| 02ZAG20C033D | 20.1 | 230 | 240 | 290 | 2500 | 3000 | 300 |
| 02ZAG25C033D | 25.75 | 180 | 200 | 230 | 2500 | 3000 | 250 |
| 02ZAG31C033D | 31.4 | 160 | 170 | 200 | 2200 | 2700 | 200 |
Left Hand Rotation
| Product No. | Capacity (cc/rev) | P1 Max. Working Pressure (Bar) | P2 Intermittent Pressure (Bar) | P3 Max. Peak Pressure (Bar) | Max Speed - P1 Pressure (rpm) | Max Speed w/o Load (rpm) | Min. Speed - P1 Pressure (rpm) |
| 02ZAG04C032S | 4.4 | 300 | 340 | 360 | 4500 | 5500 | 1000 |
| 02ZAG06C032S | 6.28 | 300 | 310 | 360 | 4500 | 5500 | 700 |
| 02ZAG08C032S | 8.16 | 300 | 310 | 360 | 3700 | 4700 | 550 |
| 02ZAG11C033S | 11.3 | 300 | 310 | 360 | 3300 | 4000 | 450 |
| 02ZAG14C033S | 14.45 | 300 | 300 | 360 | 2700 | 3300 | 400 |
| 02ZAG17C033S | 16.95 | 270 | 270 | 330 | 2500 | 3000 | 350 |
| 02ZAG20C033S | 20.1 | 230 | 240 | 290 | 2500 | 3000 | 300 |
| 02ZAG25C033S | 25.75 | 180 | 200 | 230 | 2500 | 3000 | 250 |
| 02ZAG31C033S | 31.4 | 160 | 170 | 200 | 2200 | 2700 | 200 |
