Pumps

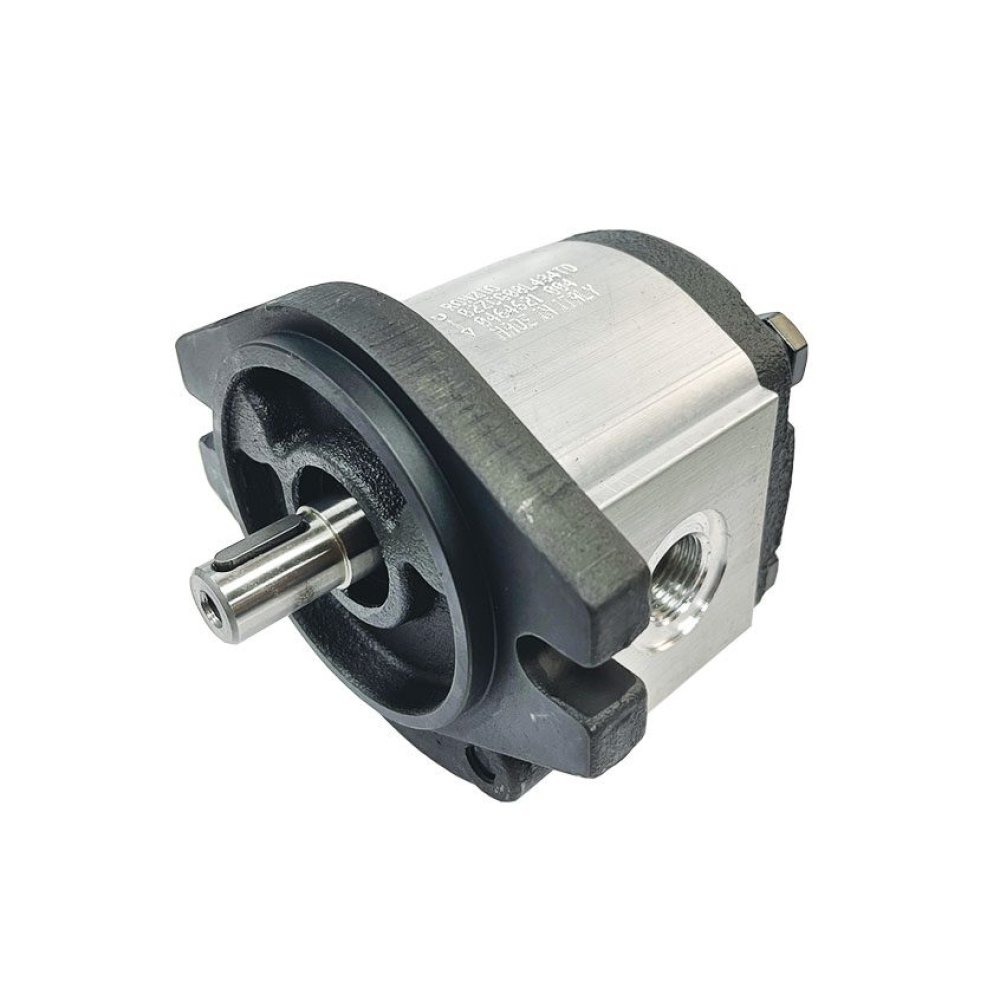

Ronzio 02ZCG 5/8 Inch Keyed Shaft

Ronzio | Ronzio 02ZCG 5/8

Price On Request

• Condition: New
• SAE A 2 Bolt Mount
• Threaded ports
• Cast iron cover with special bushings
• Heavy duty applications



Right Hand Rotation

Part No.	Capacity (cc/rev)	Port Pressure (BSPP)	Port Suction (BSPP)	P1 Max. Working Pressure (Bar)	P2 Max. Peak Pressure (Bar)	Max. Speed - P1 Pressure (rpm)	Max. Speed w/o Load (rpm)	Min. Speed - P1 Pressure (rpm)
02ZCG04L4034TD	4.4	1/2"	1/2"	300	360	4500	5500	1000
02ZCG06L4034TD	6.28	1/2"	1/2"	300	360	4500	5500	700
02ZCG08L4034TD	8.16	1/2"	1/2"	300	360	3700	4700	550
02ZCG11L4034TD	11.3	1/2"	1/2"	300	360	3300	4000	450
02ZCG14L4041TD	14.45	3/4"	3/4"	300	330	2700	3300	400
02ZCG17L4041TD	16.95	3/4"	3/4"	250	310	2500	3000	350
02ZCG20L4041TD	20.1	3/4"	3/4"	210	270	2500	3000	300
02ZCG25L4041TD	25.75	3/4"	3/4"	160	210	2500	3000	250
02ZCG31L4041TD	31.4	3/4"	3/4"	130	150	2200	2700	200



Left Hand Rotation

Part No.	Capacity (cc/rev)	Port Pressure (BSPP)	Port Suction (BSPP)	P1 Max. Working Pressure (Bar)	P2 Max. Peak Pressure (Bar)	Max. Speed - P1 Pressure (rpm)	Max. Speed w/o Load (rpm)	Min. Speed - P1 Pressure (rpm)
02ZCG04L4034TS	4.4	1/2"	1/2"	300	360	4500	5500	1000
02ZCG06L4034TS	6.28	1/2"	1/2"	300	360	4500	5500	700
02ZCG08L4034TS	8.16	1/2"	1/2"	300	360	3700	4700	550
02ZCG11L4034TS	11.3	1/2"	1/2"	300	360	3300	4000	450
02ZCG14L4041TS	14.45	3/4"	3/4"	300	330	2700	3300	400
02ZCG17L4041TS	16.95	3/4"	3/4"	250	310	2500	3000	350
02ZCG20L4041TS	20.1	3/4"	3/4"	210	270	2500	3000	300
02ZCG25L4041TS	25.75	3/4"	3/4"	160	210	2500	3000	250
02ZCG31L4041TS	31.4	3/4"	3/4"	130	150	2200	2700	200





Ready to purchase this item? Please call us on (02) 8608 2144 or email our team at sales@hdaus.com.au to place your order.

*Price excludes GST
